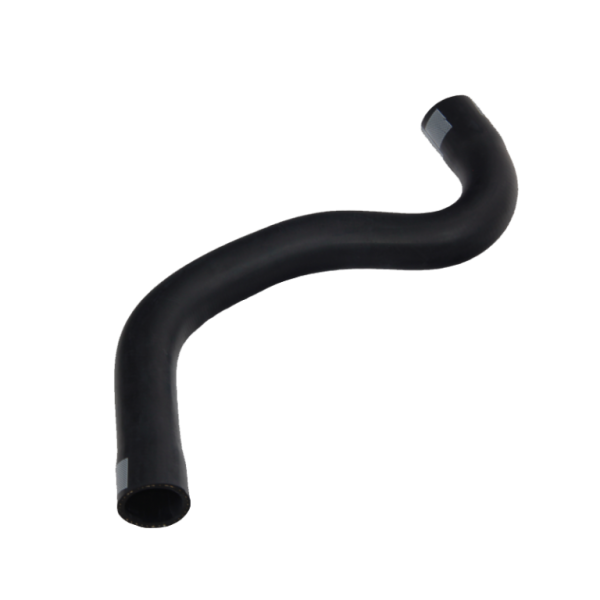

Peugeot 206 lower radiator hose

● Short description:

Mechanism and function of the lower radiator hose of the Peugeot 206 (lower radiator hose of the Rana EX) In fact, the lower radiator hose of the Rana EX is one of the most important and main components of the 206 and Rana engine cooling system. This hose is located in the lower part of the radiator of the Peugeot 206 and Rana and has a combined texture of rubber and polyester yarn. The lower radiator hose of the 206 and Rana works in such a way that it receives the water entering the radiator of the 206 and Rana and transfers it to the inlets built into the radiator to cool the engine.

Yarn type 600
Material SBR
Lifespan 4 years
Warranty 2 years
Pressure tolerance 8Bar

Description

Material of the Lower Radiator Hose for Peugeot 206 and RANA

The lower radiator hose for Peugeot 206 and RANA is produced in two material grades: EPDM (Ethylene Propylene Diene Monomer) for higher quality and SBR (Styrene-Butadiene Rubber) for standard quality.

The hose is reinforced with 600 polyester yarn to prevent leaks, water loss, and provide freeze resistance.


Lifespan of the Lower Radiator Hose for Peugeot 206 and RANA

The lifespan of the lower radiator hose depends on the material used:

  • When made from EPDM, the hose typically lasts around 4 years.

  • When made from SBR, it will have a lifespan of approximately 6 months to 1 year.


Signs of Damage to the Lower Radiator Hose for Peugeot 206 and RANA

  • Cracks on the Outer Surface: A clear indication of damage is cracking on the hose surface. The more cracks and the deeper they are, the more worn and brittle the hose has become, requiring replacement.

  • Bulging or Uneven Swelling: Another sign is uneven swelling or bulging on the surface of the hose.

  • Peeling or “Double Layering”: Peeling or double-layering indicates that the hose is deteriorating and has lost its structural integrity.


Effects of a Faulty Lower Radiator Hose for Peugeot 206 and RANA

  • Coolant Loss: The most noticeable effect is the reduction in coolant levels, which can lead to overheating of the vehicle’s wires (electrical cables) and cause damage.

  • Severe Damage: In extreme cases, a faulty hose can cause a burnt cylinder head due to excessive coolant loss.


How to Differentiate a High-Quality Hose for Peugeot 206 and RANA

  • Surface: A high-quality hose made from EPDM typically has a smooth, glossy surface. In contrast, one made from SBR will have a dull appearance.

  • Lack of Imperfections: A high-quality hose will be free of defects such as pitting or double-layering.

  • Smell Test: High-quality EPDM hoses usually have a sweet smell, while those made from lower-quality materials may lack this scent.
